Material flow is the first check
Dry powder, granules, liquid, slurry and bridging materials require different contact and cleaning arrangements.
RCYA Inclined Pipeline Permanent Magnetic Iron Remover
RCYA Inclined Pipeline Permanent Magnetic Iron Remover is presented as a industrial magnetic filter option for powder, granule, liquid and slurry processing. Its final configuration should be based on the actual material, process position, operating conditions and the technical information available for the requested project.
- Material flow is the first check
- Magnetic contact needs space
- Cleaning access is designed in
- Contact materials are confirmed
- Process role
- Capture ferromagnetic contamination close to the material flow
- Feed type
- Dry free-flowing material, liquid or slurry by design
- Cleaning choice
- Manual, drawer, rotary or pipeline arrangement
- Selection starts with
- Flow behavior, temperature, interface and cleaning access
Product role
Overview and how it fits the process
RCYA Inclined Pipeline Permanent Magnetic Iron Remover is presented as a industrial magnetic filter option for powder, granule, liquid and slurry processing. Its final configuration should be based on the actual material, process position, operating conditions and the technical information available for the requested project.
COWIN MAGNET supports selection discussions, OEM/ODM configuration, sourcing coordination, inspection communication and export follow-up for industrial buyers. Product-specific values are confirmed from the selected configuration rather than assumed from a generic catalog description.
Selection logic
Why this configuration needs site information
Magnetic contact needs space
The housing, tube or grid layout is reviewed around the available flow path so material can contact the magnetic surface without unnecessary restriction.
Cleaning access is designed in
A practical cleaning interval and safe access should be agreed before choosing a manual, drawer, rotary or pipeline configuration.
Contact materials are confirmed
For hygienic, corrosive or temperature-sensitive duties, the required contact material and operating limit must be confirmed against the real process.
Process position
Where it fits in a typical material flow
The diagram is a planning aid. Final positioning is confirmed from the line layout and the material duty.
- 01Material feed
- 02Magnetic contact zone
- 03Captured ferromagnetic contamination
- 04Clean material outlet
- 05Planned cleaning point

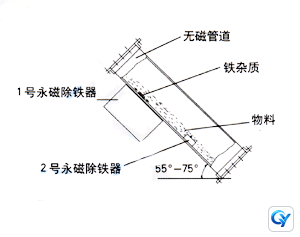

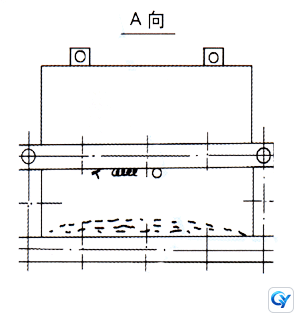

Engineering reference
Installation and dimensional reference
These diagrams support preliminary discussion. Final dimensions and installation details are confirmed for the selected configuration.
Applications
Typical materials and industry contexts
Technical information
Technical specifications and confirmation basis
Published model references are shown where available. Final technical details are confirmed from current product records, material and site conditions.
| Model | Reference field: 适应产量 ≤T/h / 15 | Reference field: 管道外形尺寸 L×W×Hmm / 800×500×150 | Reference field: 永磁铁外形尺寸 L×W×H mm / 500×300×120(1) | Reference field: 法兰接口外形尺寸 W×H mm / 580×230 | Reference field: 适应坡度与地面夹角≦ o / 55 o -75 o | Weight (kg) | Reference field: 适应物料 / 粉状 |
|---|---|---|---|---|---|---|---|
| RCYA-15 | 15 | 800×500×150 | 500×70×30(2) | ||||
| RCYA-30 | 30 | 900×600×200 | 600×400×140(1) | 580×230 | 55 o -75 o | 180 | 粉状 |
| RCYA-30 | 30 | 900×600×200 | 600×70×30(2) | ||||
| RCYA-50 | 50 | 1000×700×250 | 700×400×180(1) | 800×350 | 55 o -75 o | 300 | |
| RCYA-50 | 50 | 1000×700×250 | 700×70×30(2) | ||||
| RCYA-80 | 80 | 1100×800×300 | 800×500×200(1) | 800×350 | 55 o -75 o | 300 | 粉状 |
| RCYA-80 | 80 | 1100×800×300 | 800×70×30(2) | ||||
| RCYA-100 | 100 | 1200×900×300 | 900×600×300(1) | 1000×400 | 55 o -75 o | 950 | |
| RCYA-100 | 100 | 1200×900×300 | 900×70×30(2) | ||||
| RCYA-120 | 120 | 1200×1000×3000 | 1000×700×300(1) | 1000×400 | 55 o -75 o | 950 | 粉状 |
| RCYA-120 | 120 | 1200×1000×3000 | 1000×70×30(2) | ||||
| RCYA-200 | 200 | 1200×1200×350 | 1200×900×350 | 1500×450 | 55 o -75 o | 2100 | |
| RCYA-200 | 200 | 1200×1200×350 | 1200×700×30 |
Selection checklist
What to send for an initial configuration review
- Describe whether the material is free-flowing, sticky, bridging or abrasive.
- State the cleaning interval and whether shutdown is possible.
- For food or hygienic duties, confirm the actual compliance and contact-material requirements before ordering.
Important boundary
- The product should not be described as food-grade, sanitary or pressure-rated unless the specific material and documentation are verified.
- Flow restriction and bridging risk must be assessed for cohesive or viscous materials.
Send the process details with the product pre-selected in the inquiry form.
Start product inquiryProcess equipment
Related products for the same process line
Magnetic Separation EquipmentCBZ type rotary automatic magnetic separator
View product
Magnetic Separation EquipmentCGB type rotary semi-automatic magnetic separator
View product
Magnetic Separation EquipmentRCYF Vertical Pipeline Permanent Magnetic Iron Remover
View product
Magnetic Separation EquipmentRCYG Pipeline Self-Dumping Permanent Magnetic Iron Remover
View product
Magnetic Separation EquipmentRCYZ type vertical pipeline permanent magnet iron remover
View productProduct FAQ
Questions to resolve before ordering
Which magnetic filter is suitable for dry powder or pellets?
The choice depends on free-flowing behavior, particle size, available headroom and cleaning access. Drawer, grid and bar arrangements are commonly reviewed for gravity-flow duties.
Can a magnetic filter replace a metal detector?
No. A magnetic filter captures ferromagnetic particles. A metal detector is a detection system and may identify other metals depending on its configuration.
What should be confirmed for liquid or slurry filtration?
Please provide flow rate, viscosity, temperature, solids content, line pressure, connection size, installation orientation and the expected contamination type.
Does every magnetic filter meet food-processing requirements?
No. Food-related contact material, finish, cleaning method and documentation must be confirmed for the actual process; they should not be assumed from a product family name.
