RCYB Permanent Magnetic Iron Remover

Name: RCYB Permanent Magnetic Iron Remover
Brand: COWIN MAGNET

Product role

Overview and how it fits the process

The RCYB permanent magnetic iron remover is considered for conveyor, chute or feeder positions where ferromagnetic tramp material needs to be captured and periodic manual cleaning can be planned safely. The permanent magnetic system does not rely on an electrical excitation supply to create its magnetic field, while the installation and cleaning method still need to suit the real material path.

It is not described as a continuous self-discharge solution. The decision depends on contamination frequency, safe service access, belt width, material depth, suspension height and the largest anticipated tramp item. Where uninterrupted discharge is needed, a self-cleaning arrangement should be reviewed instead.

Selection logic

Why this configuration needs site information

01

Defined magnet position

The separator is selected around the actual conveyor path, discharge point and available suspension space.

02

Cleaning method matched to contamination

Manual cleaning suits lower contamination where a safe service stop is acceptable; self-cleaning is considered for continuous discharge requirements.

03

Conveyor data first

Belt width, speed, material layer depth and the largest expected tramp item are required before a model can be confirmed.

04

Site conditions matter

Dust, temperature, power availability and access for maintenance should be reviewed with the installation layout.

Process position

Where it fits in a typical material flow

The diagram is a planning aid. Final positioning is confirmed from the line layout and the material duty.

01Feed conveyor
02Tramp iron risk point
03Suspended magnet position
04Ferrous discharge or manual cleaning
05Protected downstream equipment

Engineering reference

Installation and dimensional reference

These diagrams support preliminary discussion. Final dimensions and installation details are confirmed for the selected configuration.

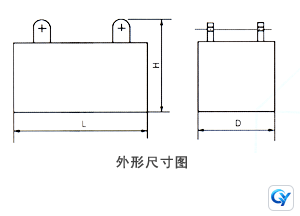

RCYB suspended permanent magnetic iron remover dimensional reference drawing — Dimensional reference for preliminary configuration.

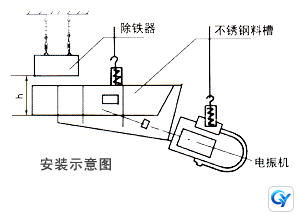

RCYB suspended permanent magnetic iron remover inline installation reference drawing — Inline installation reference. Confirm clearance and material trajectory for the final layout.

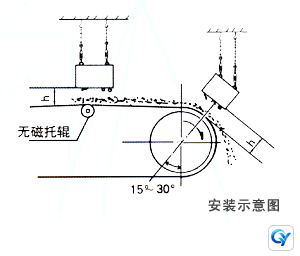

RCYB suspended permanent magnetic iron remover cross-belt installation reference drawing — Cross-belt installation reference. Final mounting is reviewed against the conveyor layout.

Applications

Typical materials and industry contexts

Mining and mineral processing Recycling and metal recovery Cement and aggregate

Technical information

Technical specifications and confirmation basis

Published model references are shown where available. Final technical details are confirmed from current product records, material and site conditions.

Imported RCYB model reference. Final configuration must be confirmed against material and site conditions.
Model	Suitable belt width (mm)	Suspension height h (max. mm)	Belt speed (max. m/s)	Material burden thickness (max. mm)	Weight (kg)	Overall length L (mm)	Overall width D (mm)	Overall height H (mm)
RCYB-4	400	125	4.5	60	115	400	300	230
RCYB-4-1	400	75	4.5	30	65	400	250	140
RCYB-5	500	150	4.5	90	206	500	350	260
RCYB-5-1	500	100	4.5	50	96	500	260	160
RCYB-6	600	175	4.5	120	295	600	450	280
RCYB-6-1	600	130	4.5	60	158	600	350	180
RCYB-6.5	650	200	4.5	150	450	650	600	300
RCYB-8	800	250	4.5	200	680	950	950	380
RCYB-8-1	800	200	4.5	150	550	800	600	300
RCYB-10	1000	300	4.5	250	1180	1100	1000	380
RCYB-12	1200	350	4.5	300	1670	1300	1340	420
RCYB-14	1400	400	4.5	350	2350	1500	1500	420
RCYB-16	1600	450	4.5	400	2850	1750	1750	460

Configuration

Configuration points to review

Permanent or electromagnetic magnet system where applicable

Manual-clean or self-cleaning discharge arrangement

Cross-belt or inline mounting review

Suspension frame and guarding coordinated to site layout

Selection checklist

What to send for an initial configuration review

Confirm the installation direction: inline, cross-belt or at the discharge end.
Provide a conveyor drawing or site photo where available.
Allow a safe area for captured-metal discharge or manual cleaning.

Important boundary

Not a substitute for an eddy current separator where non-ferrous recovery is required.
Final selection cannot be confirmed from product name alone; conveyor and material conditions must be reviewed.

Send the process details with the product pre-selected in the inquiry form.

Start product inquiry

Process equipment

Related products for the same process line

Product FAQ

Questions to resolve before ordering

When is self-cleaning preferred over manual cleaning?

Self-cleaning is normally considered where ferrous contamination must be discharged continuously. Manual cleaning may be appropriate when contamination is low and the line can be isolated safely for service.

Should the magnet be installed inline or cross-belt?

The installation direction depends on belt speed, burden depth, the discharge side, available headroom and the required exposure to the magnetic field. The conveyor arrangement should be reviewed before selection.

What information is needed for a suspended magnet quote?

Please provide belt width, speed, material layer depth, suspension height, material description, the largest expected tramp item, desired cleaning method and a layout drawing or photos when available.

Can this separator remove all metals?

No. A magnetic separator is used for ferromagnetic contaminants. Non-ferrous metals and non-magnetic stainless steel require a different separation or detection stage.
