Defined magnet position
The separator is selected around the actual conveyor path, discharge point and available suspension space.

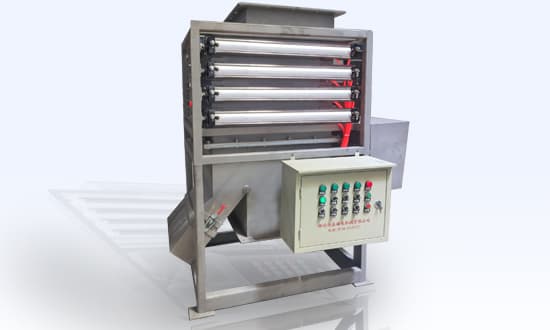

CQZ type fully automatic online magnetic separation
CQZ type fully automatic online magnetic separation is presented as a suspended magnetic separator option for conveyor and bulk material handling. Its final configuration should be based on the actual material, process position, operating conditions and the technical information available for the requested project.
- Defined magnet position
- Cleaning method matched to contamination
- Conveyor data first
- Site conditions matter
- Process role
- Tramp iron removal and equipment protection
- Material flow
- Bulk material on a conveyor or transfer point
- Cleaning choice
- Manual or continuous discharge, by configuration
- Selection starts with
- Belt width, burden depth and suspension height
Product role
Overview and how it fits the process
CQZ type fully automatic online magnetic separation is presented as a suspended magnetic separator option for conveyor and bulk material handling. Its final configuration should be based on the actual material, process position, operating conditions and the technical information available for the requested project.
COWIN MAGNET supports selection discussions, OEM/ODM configuration, sourcing coordination, inspection communication and export follow-up for industrial buyers. Product-specific values are confirmed from the selected configuration rather than assumed from a generic catalog description.
Selection logic
Why this configuration needs site information
Cleaning method matched to contamination
Manual cleaning suits lower contamination where a safe service stop is acceptable; self-cleaning is considered for continuous discharge requirements.
Conveyor data first
Belt width, speed, material layer depth and the largest expected tramp item are required before a model can be confirmed.
Site conditions matter
Dust, temperature, power availability and access for maintenance should be reviewed with the installation layout.
Process position
Where it fits in a typical material flow
The diagram is a planning aid. Final positioning is confirmed from the line layout and the material duty.
- 01Feed conveyor
- 02Tramp iron risk point
- 03Suspended magnet position
- 04Ferrous discharge or manual cleaning
- 05Protected downstream equipment
Applications
Typical materials and industry contexts
Technical information
Technical specifications and confirmation basis
Published model references are shown where available. Final technical details are confirmed from current product records, material and site conditions.
ParameterPublished recordSelection confirmation
Model designationAvailable on requestTo be confirmed based on material and site conditions.
Magnet systemAvailable on requestTo be confirmed based on material and site conditions.
Cleaning arrangementAvailable on requestTo be confirmed based on material and site conditions.
Belt widthAvailable on requestTo be confirmed based on material and site conditions.
Belt speedAvailable on requestTo be confirmed based on material and site conditions.
Material layerAvailable on requestTo be confirmed based on material and site conditions.
Suspension heightAvailable on requestTo be confirmed based on material and site conditions.
Largest tramp ironAvailable on requestTo be confirmed based on material and site conditions.
Cooling or power requirement where applicableAvailable on requestTo be confirmed based on material and site conditions.
Selection checklist
What to send for an initial configuration review
- Confirm the installation direction: inline, cross-belt or at the discharge end.
- Provide a conveyor drawing or site photo where available.
- Allow a safe area for captured-metal discharge or manual cleaning.
Important boundary
- Not a substitute for an eddy current separator where non-ferrous recovery is required.
- Final selection cannot be confirmed from product name alone; conveyor and material conditions must be reviewed.
Send the process details with the product pre-selected in the inquiry form.
Start product inquiryProcess equipment
Related products for the same process line
Suspended & Self-Unloading Iron RemoversRCYD Permanent Self-Cleaning Iron Remover
View product
Suspended & Self-Unloading Iron RemoversRCDD Self-Cooling Electromagnetic Iron Remover
View product
Suspended & Self-Unloading Iron RemoversRCYB Permanent Magnetic Iron Remover
View product
Suspended & Self-Unloading Iron RemoversRCDB Self-Cooling Electromagnetic Iron Remover
View product
Magnetic Separation EquipmentCQZ type fully automatic online magnetic separator
View productProduct FAQ
Questions to resolve before ordering
When is self-cleaning preferred over manual cleaning?
Self-cleaning is normally considered where ferrous contamination must be discharged continuously. Manual cleaning may be appropriate when contamination is low and the line can be isolated safely for service.
Should the magnet be installed inline or cross-belt?
The installation direction depends on belt speed, burden depth, the discharge side, available headroom and the required exposure to the magnetic field. The conveyor arrangement should be reviewed before selection.
What information is needed for a suspended magnet quote?
Please provide belt width, speed, material layer depth, suspension height, material description, the largest expected tramp item, desired cleaning method and a layout drawing or photos when available.
Can this separator remove all metals?
No. A magnetic separator is used for ferromagnetic contaminants. Non-ferrous metals and non-magnetic stainless steel require a different separation or detection stage.
