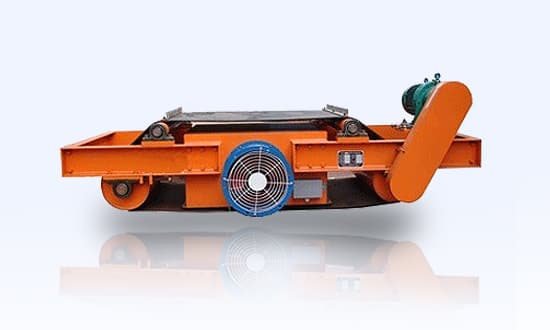

RCDC Air-Cooled Self-Cleaning Electromagnetic Iron Remover

Name: RCDC Air-Cooled Self-Cleaning Electromagnetic Iron Remover
Brand: COWIN MAGNET

Product role

Overview and how it fits the process

The RCDC air-cooled self-dumping electromagnetic iron remover combines an electromagnetic capture stage with a separate continuous discharge arrangement for ferromagnetic material. It is reviewed for conveyor lines where the process needs captured metal moved to a planned discharge point rather than held for a manual cleaning stop.

The electromagnetic duty and the discharge drive are assessed as separate parts of the configuration. Belt width, burden, suspension height, discharge space, electrical supply, ambient conditions and maintenance access must be confirmed before a final unit is proposed.

Selection logic

Why this configuration needs site information

01

Defined magnet position

The separator is selected around the actual conveyor path, discharge point and available suspension space.

02

Cleaning method matched to contamination

Manual cleaning suits lower contamination where a safe service stop is acceptable; self-cleaning is considered for continuous discharge requirements.

03

Conveyor data first

Belt width, speed, material layer depth and the largest expected tramp item are required before a model can be confirmed.

04

Site conditions matter

Dust, temperature, power availability and access for maintenance should be reviewed with the installation layout.

Process position

Where it fits in a typical material flow

The diagram is a planning aid. Final positioning is confirmed from the line layout and the material duty.

01Feed conveyor
02Tramp iron risk point
03Suspended magnet position
04Ferrous discharge or manual cleaning
05Protected downstream equipment

Engineering reference

Installation and dimensional reference

These diagrams support preliminary discussion. Final dimensions and installation details are confirmed for the selected configuration.

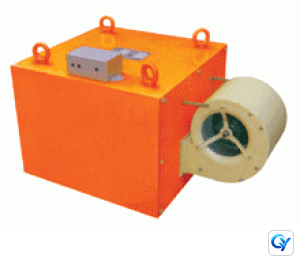

RCDC Air-Cooled Self-Dumping Electromagnetic Iron Remover technical reference drawing 1 — Technical reference drawing. Confirm final dimensions and installation details for the selected configuration.

Applications

Typical materials and industry contexts

Mining and mineral processing Recycling and metal recovery Cement and aggregate

Technical information

Technical specifications and confirmation basis

Published model references are shown where available. Final technical details are confirmed from current product records, material and site conditions.

Model reference. Final configuration must be confirmed against material and site conditions.
Model	Suitable belt width (mm)	Reference field: 额定吊高 h mm	Magnetic field reference	Material burden thickness (max. mm)	Excitation power	Reference field: 驱机功率 ≤KW	Belt speed (max. m/s)	Weight (kg)	Overall dimensions	Overall dimensions	Overall dimensions	Overall width D (mm)	Overall dimensions
RCDC-5	500	150	60	100	1.2	1.5	2.5	1080	2060	965	720	770	455
RCDC-6	600	175	60	120	2	1.5	2.5	1350	2160	1170	810	1070	575
RCDC-6.5	650	200	70	150	3	2.2	2.5	1530	2380	1370	820	888	650
RCDC-8	800	250	70	200	4	2.2	2.5	2100	2340	1420	860	923	800
RCDC-10	1000	300	70	250	6	3.0	2.5	3380	2810	1700	880	1180	1450
RCDC-12	1200	350	70	300	8	4.0	2.5	4150	3000	1850	850	1650	1500
RCDC-14	1400	400	70	350	12	4.0	2.5	5500	3280	2070	1020	1600	1410
RCDC-16	1600	450	70	400	15	5.5	2.5	6900	3600	2270	1050	1800	1500
RCDC-18	1800	500	70	450	20	7.5	2.5	8800	4280	2500	1160	2220	2850
RCDC-20	2000	550	70	500	26	7.5	2.5	10500	4600	2750	1300	2470	3100
RCDC-22	2200	600	70	550	32	7.5	2.5	12900	5100	3100	1600	2800	3450

Configuration

Configuration points to review

Permanent or electromagnetic magnet system where applicable

Manual-clean or self-cleaning discharge arrangement

Cross-belt or inline mounting review

Suspension frame and guarding coordinated to site layout

Selection checklist

What to send for an initial configuration review

Confirm the installation direction: inline, cross-belt or at the discharge end.
Provide a conveyor drawing or site photo where available.
Allow a safe area for captured-metal discharge or manual cleaning.

Important boundary

Not a substitute for an eddy current separator where non-ferrous recovery is required.
Final selection cannot be confirmed from product name alone; conveyor and material conditions must be reviewed.

Send the process details with the product pre-selected in the inquiry form.

Start product inquiry
