RCDE Oil-Cooled Electromagnetic Iron Remover

Name: RCDE Oil-Cooled Electromagnetic Iron Remover
Brand: COWIN MAGNET

Product role

Overview and how it fits the process

The RCDE oil-cooled electromagnetic iron remover is a suspended electromagnetic option for project duties that require a cooling arrangement to be reviewed with the expected magnetic duty and operating environment. It is placed above a defined material path to capture ferromagnetic tramp material before downstream processing equipment.

The product is not presented as a universal replacement for every electromagnetic separator. Required working distance, material burden, electrical supply, cooling service considerations and cleaning plan should be verified with the supplier-approved configuration.

Selection logic

Why this configuration needs site information

01

Defined magnet position

The separator is selected around the actual conveyor path, discharge point and available suspension space.

02

Cleaning method matched to contamination

Manual cleaning suits lower contamination where a safe service stop is acceptable; self-cleaning is considered for continuous discharge requirements.

03

Conveyor data first

Belt width, speed, material layer depth and the largest expected tramp item are required before a model can be confirmed.

04

Site conditions matter

Dust, temperature, power availability and access for maintenance should be reviewed with the installation layout.

Process position

Where it fits in a typical material flow

The diagram is a planning aid. Final positioning is confirmed from the line layout and the material duty.

01Feed conveyor
02Tramp iron risk point
03Suspended magnet position
04Ferrous discharge or manual cleaning
05Protected downstream equipment

Engineering reference

Installation and dimensional reference

These diagrams support preliminary discussion. Final dimensions and installation details are confirmed for the selected configuration.

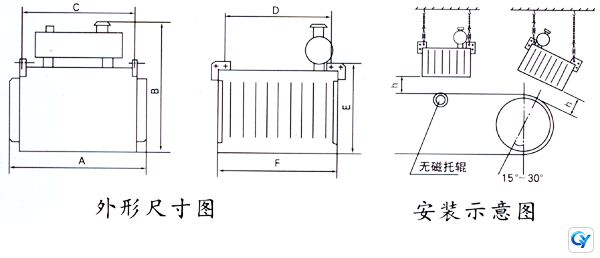

RCDE Oil-Cooled Electromagnetic Iron Remover technical reference drawing 1 — Technical reference drawing. Confirm final dimensions and installation details for the selected configuration.

RCDE Oil-Cooled Electromagnetic Iron Remover technical reference drawing 2 — Technical reference drawing. Confirm final dimensions and installation details for the selected configuration.

Applications

Typical materials and industry contexts

Mining and mineral processing Recycling and metal recovery Cement and aggregate

Technical information

Technical specifications and confirmation basis

Published model references are shown where available. Final technical details are confirmed from current product records, material and site conditions.

Model reference. Final configuration must be confirmed against material and site conditions.
Reference field: 项目 / 参数	Suitable belt width (mm)	Reference field: 额定吊高h mm	Magnetic field reference	Belt speed (max. m/s)	Material burden thickness (max. mm)	Excitation power	Weight (kg)	Overall dimensions	Overall dimensions	Overall dimensions	Overall dimensions	Overall dimensions	Overall dimensions
型号	适应带宽 mm	额定吊高h mm	磁场强度 ≥mT	适应带速 ≤m/s	物料厚度 ≤mm	励磁功率 ≤kw	重量 kg	外型尺寸mm	外型尺寸mm	外型尺寸mm	外型尺寸mm	外型尺寸mm	外型尺寸mm
RCDE-4	适应带宽 mm	额定吊高h mm	磁场强度 ≥mT	适应带速 ≤m/s	物料厚度 ≤mm	励磁功率 ≤kw	重量 kg	400	100	50	4.5	60	0.6
RCDE-5	500	150	60	100	1	500	670	760	480	300	4.5	475	500
RCDE-6	600	175	60	125	1.5	650	775	835	580	450	4.5	530	600
RCDE-6.5	650	200	70	150	2.0	750	795	855	590	440	4.5	550	650
RCDE-8	800	250	70	200	3	1150	1050	980	770	620	4.5	670	835
RCDE-10	1000	300	70	250	4.5	1400	1400	1160	940	800	4.5	755	1000
RCDE-12	1200	350	70	300	6	2780	1460	1190	1260	1070	4.5	730	1290
RCDE-14	1400	400	70	350	8.5	4200	1700	1280	1500	1340	4.5	800	1560
RCDE-16	1600	450	70	400	12.5	5700	1950	1370	1850	1630	4.5	860	1850
RCDE-18	1800	500	70	450	18	7300	2170	1490	2050	1880	4.5	950	2000
RCDE-20	2000	550	70	500	22	8500	2400	1660	2250	2180	4.5	1110	2100
RCDE-22	2200	600	70	550	27	10500	2700	1900	2470	2420	4.5	1350	2280

Configuration

Configuration points to review

Permanent or electromagnetic magnet system where applicable

Manual-clean or self-cleaning discharge arrangement

Cross-belt or inline mounting review

Suspension frame and guarding coordinated to site layout

Selection checklist

What to send for an initial configuration review

Confirm the installation direction: inline, cross-belt or at the discharge end.
Provide a conveyor drawing or site photo where available.
Allow a safe area for captured-metal discharge or manual cleaning.

Important boundary

Not a substitute for an eddy current separator where non-ferrous recovery is required.
Final selection cannot be confirmed from product name alone; conveyor and material conditions must be reviewed.

Send the process details with the product pre-selected in the inquiry form.

Start product inquiry

Process equipment

Related products for the same process line

Product FAQ

Questions to resolve before ordering

When is self-cleaning preferred over manual cleaning?

Self-cleaning is normally considered where ferrous contamination must be discharged continuously. Manual cleaning may be appropriate when contamination is low and the line can be isolated safely for service.

Should the magnet be installed inline or cross-belt?

The installation direction depends on belt speed, burden depth, the discharge side, available headroom and the required exposure to the magnetic field. The conveyor arrangement should be reviewed before selection.

What information is needed for a suspended magnet quote?

Please provide belt width, speed, material layer depth, suspension height, material description, the largest expected tramp item, desired cleaning method and a layout drawing or photos when available.

Can this separator remove all metals?

No. A magnetic separator is used for ferromagnetic contaminants. Non-ferrous metals and non-magnetic stainless steel require a different separation or detection stage.
