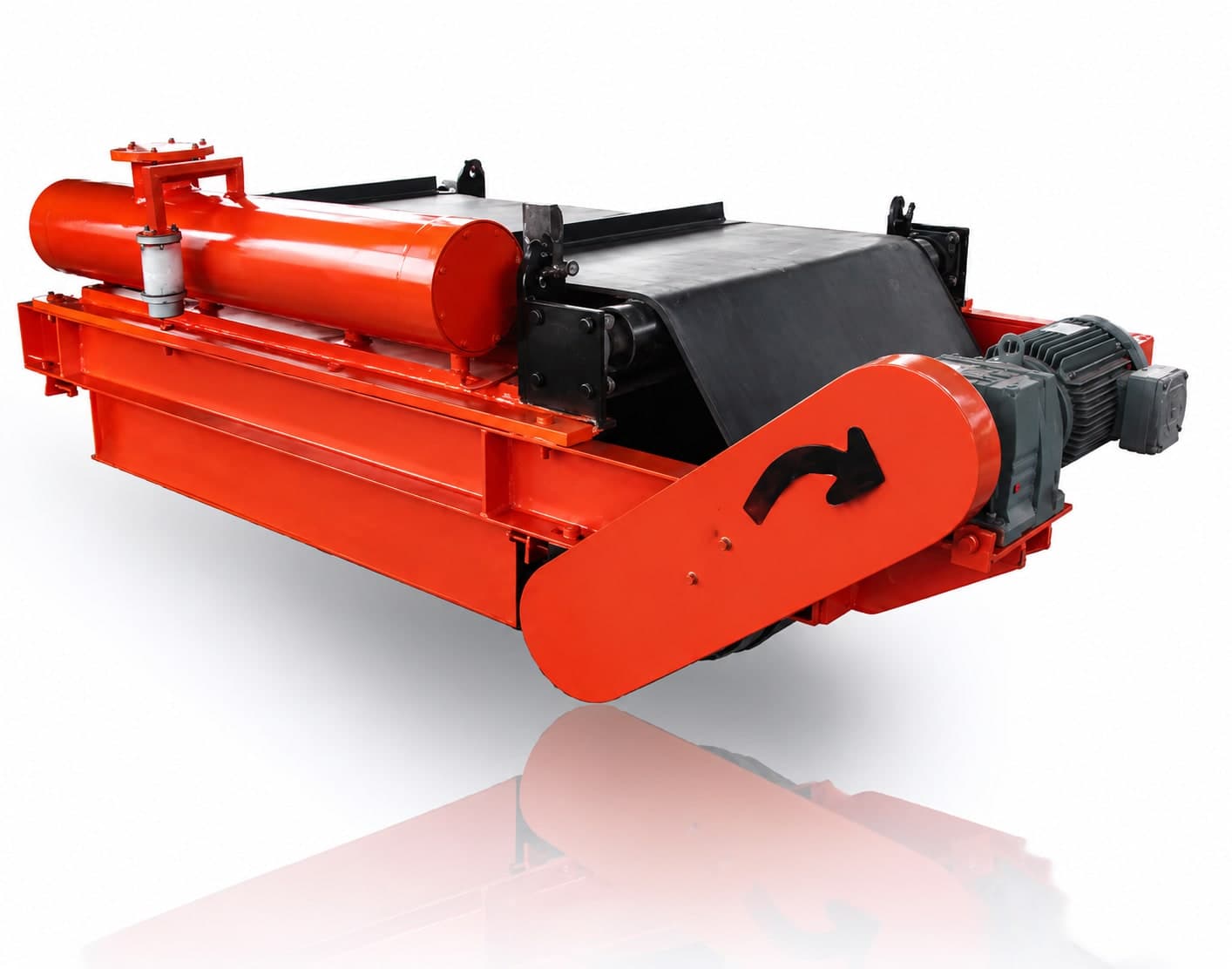

RCDF Oil-Cooled Self-Cleaning Electromagnetic Iron Remover

Name: RCDF Oil-Cooled Self-Cleaning Electromagnetic Iron Remover
Brand: COWIN MAGNET

Product role

Overview and how it fits the process

The RCDF oil-cooled self-dumping electromagnetic iron remover is considered for bulk-material conveyor duties that combine electromagnetic capture with continuous ferromagnetic discharge. Its process role is to remove captured tramp material to a designated area while the main material stream continues to downstream equipment.

Oil cooling, excitation, discharge drive and access for routine maintenance are distinct parts of the selection review. The project should provide belt geometry, burden, suspension height, tramp iron description, power conditions and the available discharge and service space.

Selection logic

Why this configuration needs site information

01

Defined magnet position

The separator is selected around the actual conveyor path, discharge point and available suspension space.

02

Cleaning method matched to contamination

Manual cleaning suits lower contamination where a safe service stop is acceptable; self-cleaning is considered for continuous discharge requirements.

03

Conveyor data first

Belt width, speed, material layer depth and the largest expected tramp item are required before a model can be confirmed.

04

Site conditions matter

Dust, temperature, power availability and access for maintenance should be reviewed with the installation layout.

Process position

Where it fits in a typical material flow

The diagram is a planning aid. Final positioning is confirmed from the line layout and the material duty.

01Feed conveyor
02Tramp iron risk point
03Suspended magnet position
04Ferrous discharge or manual cleaning
05Protected downstream equipment

Engineering reference

Installation and dimensional reference

These diagrams support preliminary discussion. Final dimensions and installation details are confirmed for the selected configuration.

RCDF Oil-Cooled Self-Dumping Electromagnetic Iron Remover technical reference drawing 1 — Technical reference drawing. Confirm final dimensions and installation details for the selected configuration.

Applications

Typical materials and industry contexts

Mining and mineral processing Recycling and metal recovery Cement and aggregate

Technical information

Technical specifications and confirmation basis

Published model references are shown where available. Final technical details are confirmed from current product records, material and site conditions.

Model reference. Final configuration must be confirmed against material and site conditions.
Reference field: 项目 / 参数	Suitable belt width (mm)	Reference field: 额定吊高h mm	Magnetic field reference	Material burden thickness (max. mm)	Excitation power	Reference field: 驱动功率 ≤kw	Belt speed (max. m/s)	Weight (kg)	Overall dimensions	Overall dimensions	Overall dimensions	Overall dimensions	Overall dimensions
型号	适应带宽 mm	额定吊高h mm	磁场强度 ≥mT	物料厚度 ≤mm	励磁功率 ≤kw	驱动功率 ≤kw	适应带速 ≤m/s	重量 kg	外型尺寸mm	外型尺寸mm	外型尺寸mm	外型尺寸mm	外型尺寸mm
RCDF-5	适应带宽 mm	额定吊高h mm	磁场强度 ≥mT	物料厚度 ≤mm	励磁功率 ≤kw	驱动功率 ≤kw	适应带速 ≤m/s	重量 kg	500	150	60	100	1.2
RCDF-6	600	175	60	130	2	1.5	1350	2160	1170	810	1070	575
RCDF-6.5	650	200	70	150	3	2.2	1530	2380	1370	820	888	650
RCDF-8	800	250	70	200	4	2.2	2100	2340	1420	860	923	800
RCDF-10	1000	300	70	250	6	3	3380	2810	1700	880	1180	1450
RCDF-12	1200	350	70	300	8	4	4150	3000	1850	850	1650	1500
RCDF-14	1400	400	70	350	12	4	5500	3280	2070	1020	1600	1410
RCDF-16	1600	450	70	400	15	5.5	6900	3600	2270	1050	1800	1500
RCDF-18	1800	500	70	450	20	7.5	8800	4380	2500	1160	2220	2850

Configuration

Configuration points to review

Permanent or electromagnetic magnet system where applicable

Manual-clean or self-cleaning discharge arrangement

Cross-belt or inline mounting review

Suspension frame and guarding coordinated to site layout

Selection checklist

What to send for an initial configuration review

Confirm the installation direction: inline, cross-belt or at the discharge end.
Provide a conveyor drawing or site photo where available.
Allow a safe area for captured-metal discharge or manual cleaning.

Important boundary

Not a substitute for an eddy current separator where non-ferrous recovery is required.
Final selection cannot be confirmed from product name alone; conveyor and material conditions must be reviewed.

Send the process details with the product pre-selected in the inquiry form.

Start product inquiry

Process equipment

Related products for the same process line

Product FAQ

Questions to resolve before ordering

When is self-cleaning preferred over manual cleaning?

Self-cleaning is normally considered where ferrous contamination must be discharged continuously. Manual cleaning may be appropriate when contamination is low and the line can be isolated safely for service.

Should the magnet be installed inline or cross-belt?

The installation direction depends on belt speed, burden depth, the discharge side, available headroom and the required exposure to the magnetic field. The conveyor arrangement should be reviewed before selection.

What information is needed for a suspended magnet quote?

Please provide belt width, speed, material layer depth, suspension height, material description, the largest expected tramp item, desired cleaning method and a layout drawing or photos when available.

Can this separator remove all metals?

No. A magnetic separator is used for ferromagnetic contaminants. Non-ferrous metals and non-magnetic stainless steel require a different separation or detection stage.
