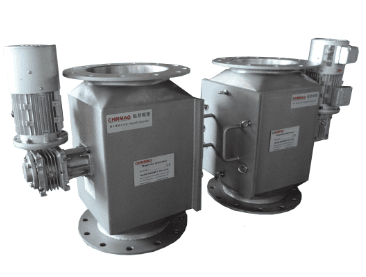

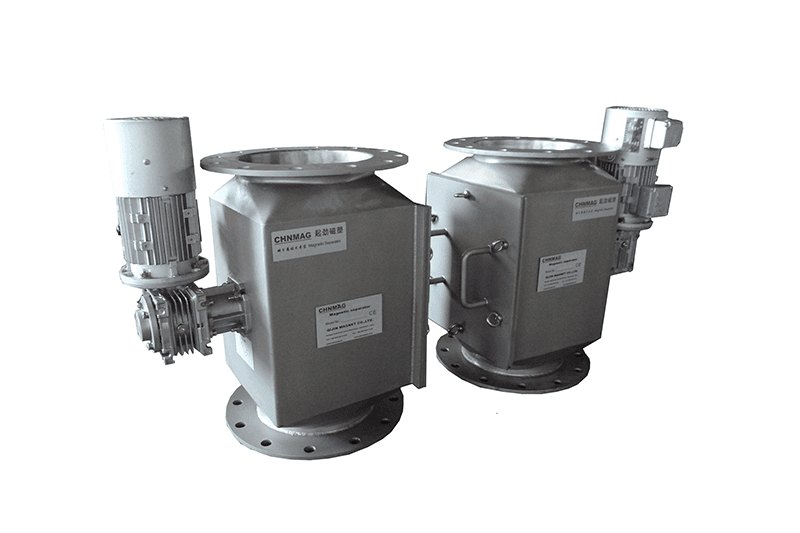

Rotary Pipe Magnet

Rotary Pipe Magnet

A Rotary Pipe Magnet is a magnetic filtration option for a defined process flow where a rotating arrangement may be considered to help manage material contact and cleaning.

Technical data
Process role
Capture ferromagnetic contamination close to the material flow
Feed type
Dry free-flowing material, liquid or slurry by design
Cleaning choice
Manual, drawer, rotary or pipeline arrangement
Product role

Overview

A Rotary Pipe Magnet is a magnetic filtration option for a defined process flow where a rotating arrangement may be considered to help manage material contact and cleaning. The exact suitability depends on whether the feed is dry, granular, cohesive, liquid or slurry, as well as its temperature, flowability and connection geometry.

This product should be discussed as one element of the material path, with the inlet, magnetic contact zone, outlet and cleaning access understood together. It is not described as a universal solution for every powder or pipeline duty. The initial selection record should include flow rate, material behavior, temperature, interface size and the expected cleaning interval.

How it fits your process

  1. 01Material feed
  2. 02Magnetic contact zone
  3. 03Captured ferromagnetic contamination
  4. 04Clean material outlet
  5. 05Planned cleaning point

Technical information

Published model references are shown here. Final technical values are confirmed from the selected configuration and site conditions.

Review technical data
