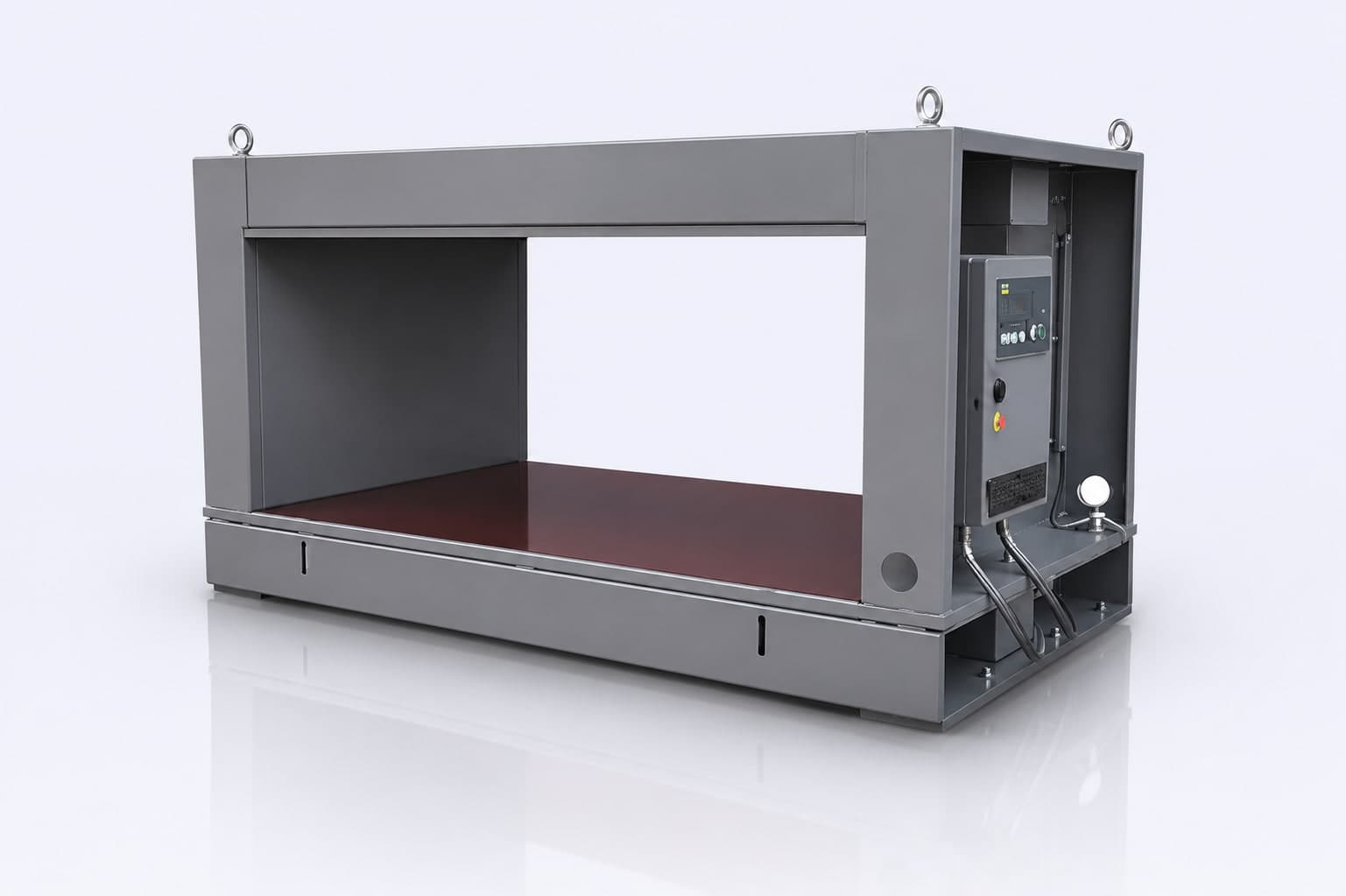

DLS Window Metal Detector

Name: DLS Window Metal Detector
Brand: COWIN MAGNET

Product role

Overview and how it fits the process

The DLS window metal detector monitors material passing through a defined detection opening. It can be configured as part of an alarm, stop or reject response, but the final performance depends on the actual metal target, its size and orientation, opening dimensions, material effect, belt speed and installation isolation.

A metal detector does not physically remove detected material on its own, and it is not the same as a magnetic separator. Where ferromagnetic material must be removed, the line may also require a suitable magnetic separation stage.

Selection logic

Why this configuration needs site information

01

Detection is not removal

A metal detector identifies a signal under its configured conditions. The alarm, stop or reject response is a separate line-design decision.

02

Opening and material matter

The window size, conveyed material, moisture or product effect and belt conditions should be reviewed together.

03

Integration is part of selection

The detector needs a defined conveyor or chute position, electrical interface and response procedure for the operating team.

04

Magnetic separation can be complementary

A magnetic separator may remove ferromagnetic contamination upstream, while a detector can be used for the separate detection role required by the line.

Process position

Where it fits in a typical material flow

The diagram is a planning aid. Final positioning is confirmed from the line layout and the material duty.

01Conveyed material
02Detector window
03Signal evaluation
04Alarm, stop or reject response
05Documented inspection action

Applications

Typical materials and industry contexts

Recycling and metal recovery Food and grain processing

Technical information

Technical specifications and confirmation basis

Published model references are shown where available. Final technical details are confirmed from current product records, material and site conditions.

ParameterPublished recordSelection confirmation

Model designationAvailable on requestTo be confirmed based on material and site conditions.

Window or channel sizeAvailable on requestTo be confirmed based on material and site conditions.

Material conditionAvailable on requestTo be confirmed based on material and site conditions.

Detection targetAvailable on requestTo be confirmed based on material and site conditions.

Belt or feed speedAvailable on requestTo be confirmed based on material and site conditions.

Alarm or reject interfaceAvailable on requestTo be confirmed based on material and site conditions.

Power and control requirementAvailable on requestTo be confirmed based on material and site conditions.

Configuration

Configuration points to review

Window or channel size

Alarm, stop or reject signal arrangement

Conveyor interface and belt condition review

Electrical and communication interface confirmed for the line

Selection checklist

What to send for an initial configuration review

Describe the actual conveyed product and operating conditions.
State whether the line requires an alarm, stop signal or a separately designed reject action.
Do not use a metal detector specification as proof that metal is automatically removed.

Important boundary

Detection capability must not be claimed without the actual material, aperture and operating condition.
The detector is not presented as an automatic metal-removal device.

Send the process details with the product pre-selected in the inquiry form.

Start product inquiry

Process equipment

Related products for the same process line

Product FAQ

Questions to resolve before ordering

What does a window metal detector do?

It monitors material passing through a defined aperture and provides a response according to its configuration. The final detection capability depends on the actual product, opening and operating conditions.

Does a metal detector remove metal automatically?

Not by itself. Removal requires an appropriate reject, stop or downstream separation arrangement designed for the production line.

Can a magnetic separator and metal detector be used together?

Yes, when their separate roles are clear: magnetic equipment addresses ferromagnetic material, while a detector provides the detection function required by the line.

What is required for a detector selection review?

Provide the window size, conveyor arrangement, material, product effect, expected contaminant, belt speed, required response and available electrical interface.
